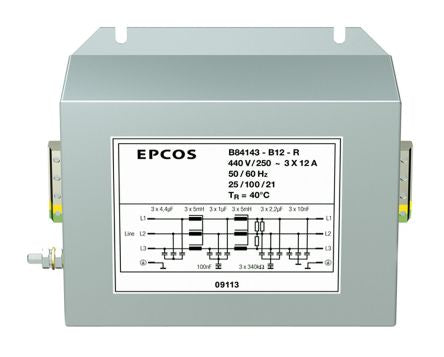

EPCOS B84143B*R000 Series 25A 440 V ac 50 → 60Hz Screw Mount RFI Filter, with Terminal Block Terminals 3 Phase [B84143B0025R000]; 213-8315
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 25A |
| Maximum Voltage Rating | 440 V ac |
| Mounting Type | Screw Mount |
| Termination Style | Terminal Block |
| Number of Phases | 3 |
| Series | B84143B*R000 |
| Operating Frequency | 50 → 60Hz |
| Length | 91mm |
| Depth | 216mm |
| Height | 156mm |
| Dimensions | 91 x 216 x 156 |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.862 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 10mΩ |
| Standards Met | UL 1283 |
