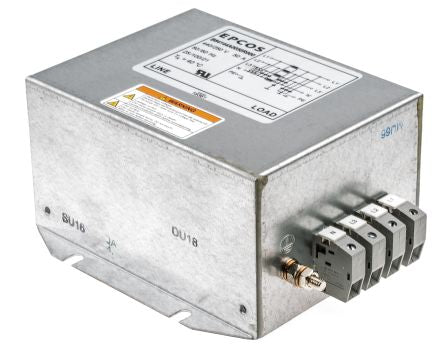

EPCOS B84144A*R000 Series 50A 440 V ac 50 → 60Hz Flange Mount RFI Filter, with Tab Terminals 3 Phase [B84144A0050R000]; 242-3512
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 50A |
| Maximum Voltage Rating | 440 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Tab |
| Number of Phases | 3 |
| Number of Stages | Single Stage |
| Series | B84144A*R000 |
| Operating Frequency | 50 → 60Hz |
| Length | 156mm |
| Depth | 216mm |
| Height | 91mm |
| Dimensions | 156 x 216 x 91mm |
| Leakage Current | 4.1 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1.3mΩ |
| Standards Met | UL 1283 |
