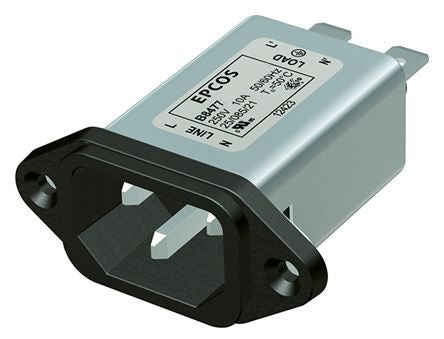

EPCOS B84771 Series 20A 250 V ac/dc 50 → 60Hz Panel Mount RFI Filter, with Tab Terminals, Single Phase [B84771M0020A000]; 167-0446
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Panel Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Series | B84771 |
| Operating Frequency | 50 → 60Hz |
| Length | 53mm |
| Depth | 65.5mm |
| Height | 30mm |
| Capacitance | 0.33 x 1µF |
| Inductance | 0.3 x 2 mH |
| Dimensions | 53 x 65.5 x 30mm |
| Leakage Current | 0 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Resistance | 1MΩ |
