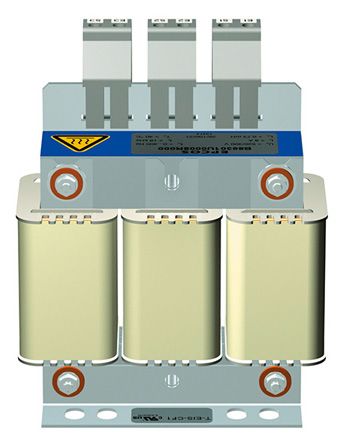

EPCOS B86301U Series 12A 520 V ac 50/60Hz Chassis Mount EMC Filter, with Terminal Block Terminals 3 Phase [B86301U0012R000]; 111-5331
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 12A |
| Maximum Voltage Rating | 520 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Terminal Block |
| Number of Phases | 3 |
| Series | B86301U |
| Number of Stages | Single Stage |
| Operating Frequency | 50/60Hz |
| Length | 125mm |
| Depth | 80mm |
| Height | 140mm |
| Inductance | 400 μH |
| Dimensions | 125 x 80 x 140mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 31mΩ |
| Power Loss | 19W |
