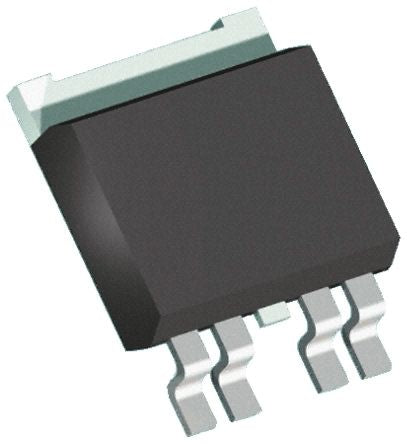

EXAR XRP6272ITC5TR-F, LDO Regulator, 2A Adj./Fixed, 5 V, 0.7 → 5 V, ±2% 5-Pin DPAK [XRP6272ITC5TR-F]; 847-2882
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 0.7 → 5 V, 5 V |
| Output Type | Adjustable, Fixed |
| Package Type | TO-252 |
| Maximum Output Current | 2A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.8 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 5 |
| Number of Outputs | 1 |
| Polarity | Positive |
| Quiescent Current | 30µA |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 2.38mm |
| Enable | Yes |
| Width | 6.22mm |
| Load Regulation | 15 mV |
| Line Regulation | 15 mV |
| Length | 6.73mm |
| Dimensions | 6.73 x 6.22 x 2.38mm |
