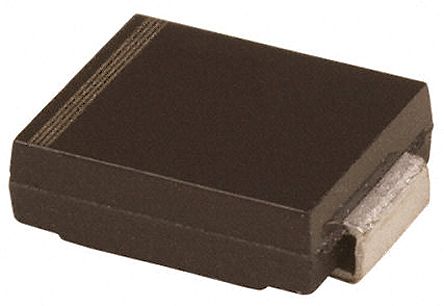

Fagor Electronica 3KSMC12A TRTB, Uni-Directional TVS Diode, 3000W, 2-Pin DO-214AB [3KSMC12A TRTB]; 123-1442
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 19.9V |
| Minimum Breakdown Voltage | 13.3V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 3000W |
| Maximum Peak Pulse Current | 151A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 7.8 x 5.9 x 2mm |
| Surge Current Rating | 200A |
| Working Voltage | 12V |
| Maximum Reverse Leakage Current | 20µA |
| Test Current | 1mA |
| Width | 5.9mm |
| Height | 2mm |
| Automotive Standard | AEC-Q101 |
| Length | 7.8mm |
