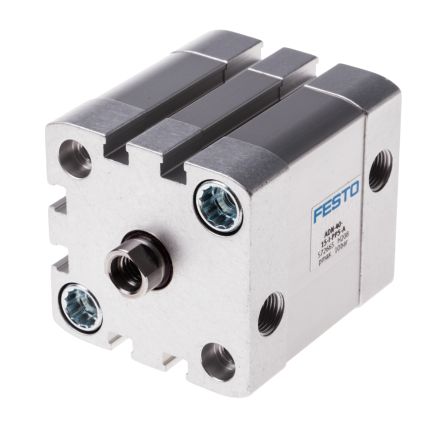

Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 15mm stroke [ADN-40-15-I-PPS-A]; 121-5764
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Stroke | 15mm |
| Bore | 40mm |
| Action | Double |
| Rods | Single |
| Force at 7 bar | 686 (Retract) N @ 6 bar, 754 (Extend) N @ 6 bar |
| Port Connection | G 1/8 |
| Cushioning Type | Air |
| Dimensions | 54.5 x 54.5 x 66.1mm |
| Length | 54.5mm |
| Width | 54.5mm |
| Maximum Operating Pressure | 10 bar |
| Height | 66.1mm |
| CAD Drawing | 3D CAD Model |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
