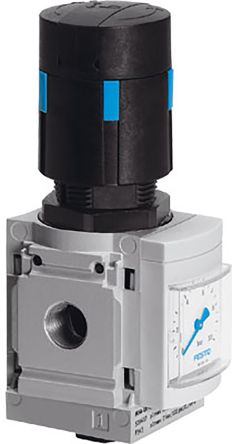

Festo Pneumatic Regulator 1000 to 7500L/min G 1/8, 0.8 to 20bar [MS4-LR-1/8-D7-AS]; 125-9948
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Port Connection | G 1/8 |
| Minimum Outlet Pressure | 0.8bar |
| Maximum Outlet Pressure | 20bar |
| Maximum Input Pressure | 12bar |
| Port Connection Thread Size | 1/8 in |
| Maximum Flow Rate | 7500L/min |
| Typical Flow Rate | 1000 to 7500L/min |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Overall Dimensions | 40 x 57 x 117.5mm |
| Overall Height | 117.5mm |
| Overall Length | 40mm |
| Overall Width | 57mm |
