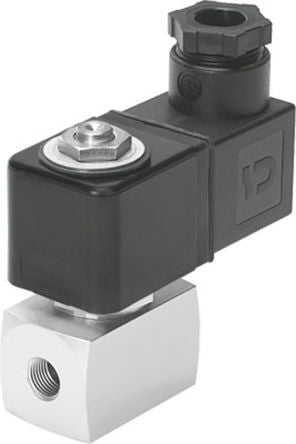

Festo Solenoid Valve VZWD-L-M22C-M-G18-10-V-1P4-50, 2 port , NC, 24 V dc, 1/8in [VZWD-L-M22C-M-G18-10-V-1P4-50]; 136-6501
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Operation | Direct |
| Connection | 1/8 in G Female |
| Connection Size | 1/8in |
| Default Valve Position | NC |
| Suitable Applications | Compressed Air, Inert Gas, Mineral Oil, Neutral Liquid, Water |
| Type | 43863 |
| Orifice Diameter | 1mm |
| Body Material | Brass |
| Maximum Working Pressure | 50 bar |
| Operating Temperature Range | -10 → +35 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +35°C |
| Maximum Closing Time | 10ms |
| Connection Gender | Female |
| Maximum Opening Time | 25ms |
| Flow Factor Kv | 0.06m³/h |
| Thread Standard or Connection Type | G |
| Series | VZWD |
