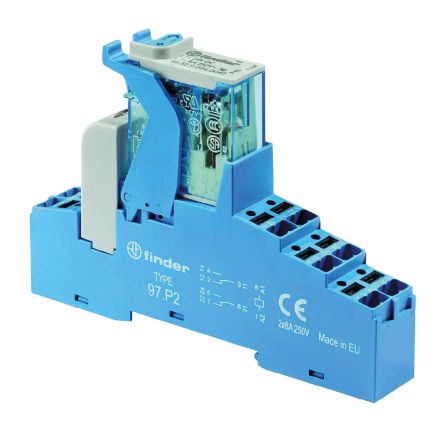

Finder 4C Series 24V dc DIN Rail Interface Relay Module, DPDT-2C/0, Push In [4C.P2.9.024.0050SPA]; 123-2836
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | DPDT-2C/0 |
| Switching Current | 0.333333333333333 |
| Mounting Type | DIN Rail |
| Terminal Type | Push In |
| Length | 15.8mm |
| Series | 4C Series |
| Depth | 66.8mm |
| Height | 95.5mm |
| Dimensions | 15.8 x 66.8 x 95.5mm |
| Contact Material | Silver Alloy |
| Input Current | 20mA |
| Turn Off Time | 3 (AC) ms, 10 (DC) ms |
| Operating Temperature Range | -40 → +70°C |
| Input Resistance | 1200Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Turn On Time | 10 (AC) ms, 10 (DC) ms |
| Number of Poles | 2 |
| Special Features | AC Coils or DC Coils, Identification Label, Supply Status Indication & Coil Suppression Module as Standard |
| Standards Met | CE, CSA, CULus, EAC, GOST, IMQ, VDE |
| Relay Switching Classification | General Purpose Relay |
