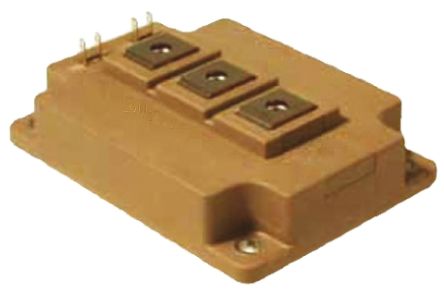

Fuji Electric 2MBi450VE-120-50, M277 Series IGBT Module, 520 A max, 1200 V, Panel Mount [2MBi450VE-120-50]; 747-1106
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Configuration | Series |
| Configuration | Series |
| Maximum Continuous Collector Current | 520 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | Panel Mount |
| Package Type | M277 |
| Pin Count | 7 |
| Maximum Power Dissipation | 3.35 kW |
| Dimensions | 110 x 80 x 30mm |
| Height | 30mm |
| Length | 110mm |
| Maximum Operating Temperature | +150 °C |
| Width | 80mm |
