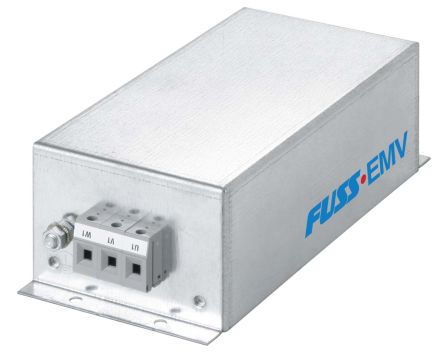

FUSS-EMV 3F480 Series 7A 3 x 528 V ac 50 → 60Hz Panel Mount EMI Filter, with Screw Terminals 3 Phase [3F480-007.260]; 866-1909
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 7A |
| Maximum Voltage Rating | 3 x 528 V ac |
| Mounting Type | Panel Mount |
| Termination Style | Screw |
| Number of Phases | 3 |
| Number of Stages | Two Stage |
| Series | 3F480 |
| Operating Frequency | 50 → 60Hz |
| Length | 177mm |
| Depth | 75mm |
| Height | 175mm |
| Dimensions | 177 x 75 x 175mm |
| Leakage Current | 3 mA |
| Maximum Operating Temperature | +45°C |
| Power Loss | 5W |
