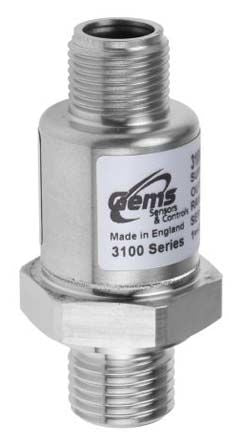

Gems Sensors Gauge for Various Media Pressure Sensor, 25bar Max Pressure Reading , 8 → 30 V dc, G1/4, IP65, IP67 [3100B0025G01E000]; 136-5035
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 25bar |
| Accuracy | 0.0025 |
| Output Type | Analogue |
| Media Measured | Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil |
| Process Connection | G1/4 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | 4-Pin M12 x 1 Connector |
| Response Time | 1 ms |
| Maximum Current | 2 (Sink & Source) mA |
| Supply Voltage | 8 → 30 V dc |
| Housing Material | 17-4 PH Stainless Steel (Wetted Part) |
| IP Rating | IP65, IP67 |
| Series | 3100 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Threaded |
