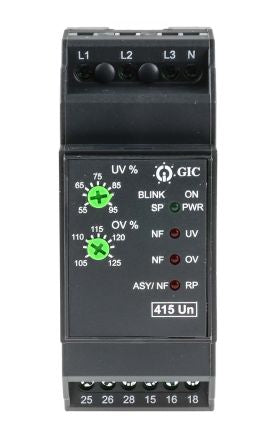

GIC Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 415 V ac [MAC04D0100]; 884-2473
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 415 V ac |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Overvoltage Protection, Undervoltage Protection |
| Electrical Phase | 3 |
| Phase Sensitivity | Neutral Loss, Phase Failure, Phase Reversal, Phase Sequence, Phase Symmetry |
| Time Delay | 5 (Over Voltage) s, 5 (Phase Failure) s, 5 (Phase Imbalance) s, 5 (Under Voltage) s, 500 ms → 1 s (Neutral Loss) |
| Frequency Sensing Range | 47 → 53 Hz |
| Series | SM 500 |
| Length | 30mm |
| Width | 60mm |
| Operating Temperature Range | -10 → +60 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail, Plug In |
| Height | 90mm |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE, RoHS |
| Dimensions | 30 x 60 x 90 mm |
| Maximum Frequency Sensed | 53Hz |
| Special Features | Automatic Recovery on Fault Removal, LED Indication for All Failure Conditions |
| Minimum Operating Temperature | -10°C |
| Minimum Frequency Sensed | 47Hz |
