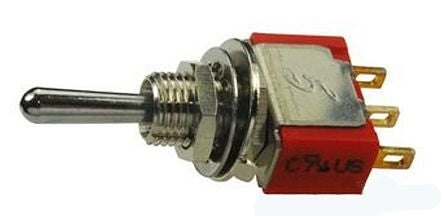

Grayhill Single Pole Double Throw (SPDT) Toggle Switch, (On)-Off-(On), Panel Mount [34ASP41B1M1QT]; 878-0350
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 0.208333333333333 |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.35mm |
| Actuator Length | 10.41mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 28 V dc, 250 V ac |
| Contact Resistance | 10mΩ |
| Panel Cut Out Size | 6.35mm |
| Operating Temperature Range | -30 +85°C |
| Mechanical Life | 40000 (Electrical)Operations |
| Contact Material | Copper Alloy, Silver Plated |
| Standards Met | RoHS, UL |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
