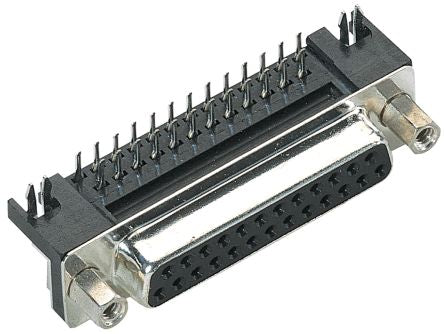

Harting D-sub Series, 25 Way Angled D-sub Connector Socket, 2.77 mm, 2.84 mm Pitch, with 4-40 UNC Screw [09683535613]; 139-3696
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.77 mm, 2.84mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| Mounting Hardware | 4-40 UNC Screw |
| Current Rating | 6.5A |
| Mixed Contact Layout | 25W2 |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| Length | 53.1mm |
| Width | 12.55mm |
| Depth | 18.2mm |
| Dimensions | 53.1 x 12.55 x 18.2mm |
| Series | D-Sub |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +125°C |
| Contact Material | Copper Alloy |
