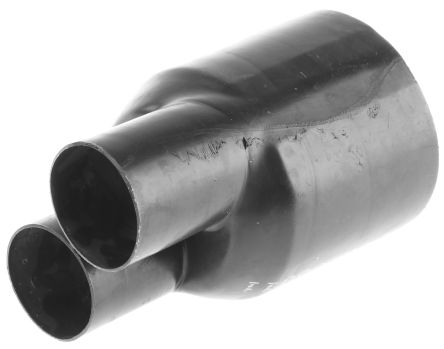

HellermannTyton Y Joint Cable Boot Black, Polyolefin Cross Linked (POX) Adhesive Lined, 33mm [402-23058 223-2-B8W-PO-X-BK]; 622-3833
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Type | Y Joint Cable Boot |
| Inside Diameter Primary | 33mm |
| Inside Diameter Secondary | 17.5mm |
| Adhesive Lined | Yes |
| Material | Polyolefin Cross Linked (POX) |
| Number of Breakouts | 2 |
| Shrink Temperature | +135°C |
| Colour | Black |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +80°C |
| Shrunk Diameter Primary | 9.4mm |
| Shrunk Diameter Secondary | 4.1mm |
