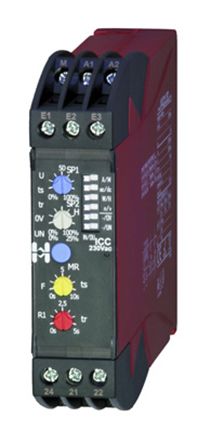

Hiquel Current Monitoring Relay With DPDT Contacts, 1 Phase, 24 V ac [ICC 24Vac]; 914-4632
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 V ac |
| Contact Configuration | DPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 0 (E1-M) mA, 0 (E2-M) mA, 0 (E3-M) A |
| Maximum Current Sensed | 1 (E2-M) A, 10 (E3-M) A, 100 (E1-M) mA |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Height | 110mm |
| Width | 93.5mm |
| Length | 22.5mm |
| Standards Met | CE, EN 60947-5-1, VDE 0435 |
| Dimensions | 22.5 x 93.5 x 110 mm |
| Number of Poles | 2 |
| Current Range | 0 mA → 1 A (E2-M), 0 → 10 (E3-M) A, 0 → 100 (E1-M) mA |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
