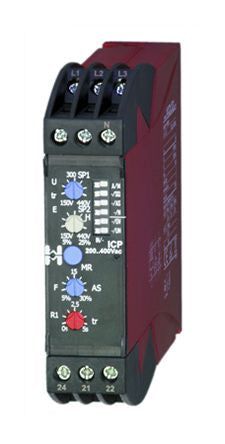

Hiquel Phase Monitoring Relay With DPDT Contacts, 3 Phase, 180 → 550 V ac [ICP300-500 (3-Wire)]; 914-4660
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase |
| Supply Voltage | 180 → 550 V ac |
| Contact Configuration | DPDT |
| Electrical Phase | 3 |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Minimum Operating Temperature | -20°C |
| Number of Poles | 2 |
| Width | 93.5mm |
| Maximum Operating Temperature | +60°C |
| Height | 110mm |
| Dimensions | 22.5 x 93.5 x 110 mm |
| Standards Met | CE, EN 60947-5-1 |
| Length | 22.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
