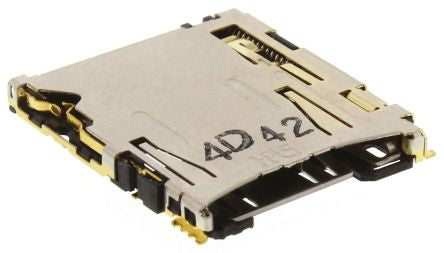

Hirose 8 Way Right Angle Micro SD Memory Card Connector With Solder Termination [DM3AT-SF-PEJM5(40)]; 122-1674
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | MicroSD |
| Gender | Female |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Pitch | 1.1mm |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 15.95mm |
| Width | 13.85mm |
| Depth | 1.68mm |
| Dimensions | 13.85 x 15.95 x 1.68mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
