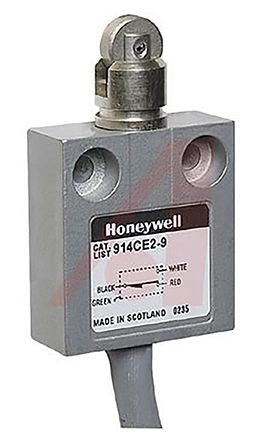

IP66, IP67, IP68 Snap Action Limit Switch Roller Plunger Die Cast Zinc, NO/NC, 250V [914CE2-9]; 808-2693
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP66, IP67, IP68 |
| Maximum Current | 0.208333333333333 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 28V |
| Connection Type | Cable |
| Series | 914CE |
| Contact Type | Snap Action |
| Terminal Type | Wire Lead |
| Length | 40mm |
| Width | 16mm |
| Mechanical Life Minimum | 10000000 (Mechanical) Operations |
| Depth | 44mm |
| Dimensions | 40 x 16 x 44 mm |
| Minimum Operating Temperature | 0°C |
| Mounting Orientation | Vertical |
| Maximum Operating Temperature | +105°C |
