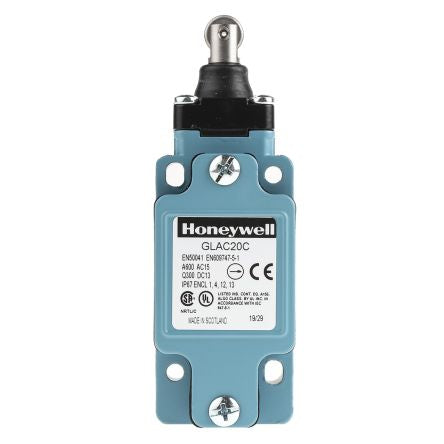

IP67 Snap Action Limit Switch Plunger Die Cast Zinc, 2NO/2NC, 600V [GLAC20C]; 186-8166
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Connection Type | Snap-On |
| Series | GLA |
| Contact Type | Snap Action |
| Terminal Type | 20 mm Cable |
| Length | 82mm |
| Width | 42mm |
| Mechanical Life Minimum | 15000000 Operations |
| Maximum Operating Temperature | +85°C |
| Mounting Orientation | Side |
| Dimensions | 82 x 42 x 42 mm |
| Minimum Operating Temperature | -25°C |
| Depth | 42mm |
