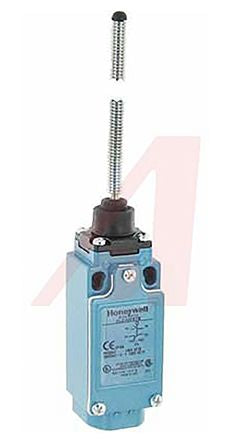

IP66 Snap Action Limit Switch Coil Spring Die Cast Zinc, NO/NC, 300V [GLCA01E7B]; 808-3157
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Coil Spring |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 300V |
| Maximum DC Voltage | 250V |
| Connection Type | 1/2 in NPT Conduit |
| Series | GLC |
| Contact Type | Snap Action |
| Terminal Type | Wire Lead |
| Length | 30.5mm |
| Width | 30mm |
| Depth | 55mm |
| Dimensions | 30.5 x 30 x 55 mm |
| Minimum Operating Temperature | -25°C |
| Mounting Orientation | Vertical |
| Mechanical Life Minimum | 15000000 Operations |
| Maximum Operating Temperature | +85°C |
