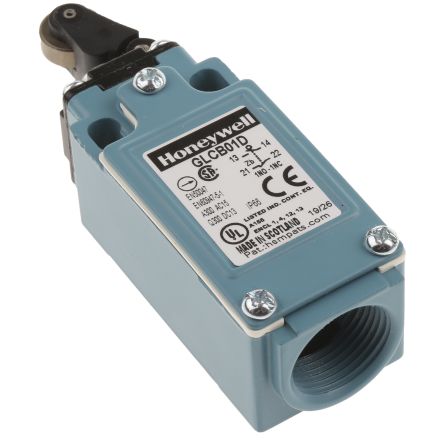

IP66 Snap Action Limit Switch Roller Lever Die Cast Zinc, NO/NC, 300V [GLCB01D]; 308-1850
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPDT 1NO/1NC |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 300V |
| Maximum DC Voltage | 300V |
| Connection Type | Internal Screw Terminal Contact Block |
| Series | GLC |
| Contact Type | Snap Action |
| Terminal Type | PG13.5 Conduit |
| Length | 68.5mm |
| Width | 30.5mm |
| Dimensions | 55 x 30.5 x 30 mm |
| Minimum Operating Temperature | -40°C |
| Mounting Orientation | EN50047 |
| Depth | 26.35mm |
| Standards Met | CCC, CE, CSA, UL |
| Mechanical Life Minimum | 10000000 cycles |
| Maximum Operating Temperature | +85°C |
