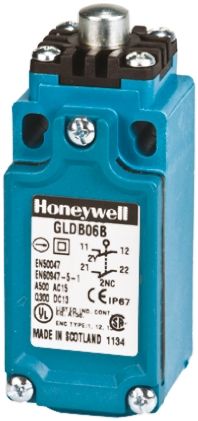

IP66 Slow Action Limit Switch Plunger Plastic, Polyester, 2NC, 300V [GLDB06B]; 311-2285
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | DPST 2NC |
| Normal State Configuration | 2NC |
| IP Rating | IP66 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Plastic, Polyester |
| Maximum AC Voltage | 300V |
| Maximum DC Voltage | 300V |
| Connection Type | Internal Screw Terminal Contact Block |
| Series | GLD |
| Contact Type | Slow Action |
| Terminal Type | 20 mm |
| Length | 68.5mm |
| Width | 30.5mm |
| Dimensions | 55 x 30.5 x 30 mm |
| Mounting Orientation | EN50047 |
| Depth | 26.35mm |
| Minimum Operating Temperature | -40°C |
| Standards Met | CCC, CE, CSA, UL |
| Mechanical Life Minimum | 10000000 Cycles |
| Maximum Operating Temperature | +85°C |
