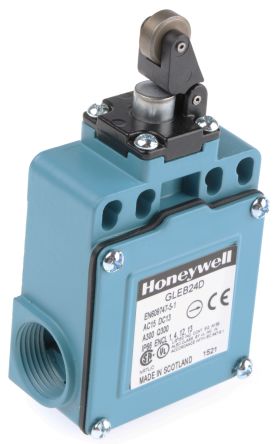

IP66 Snap Action Limit Switch Roller Lever Die Cast Zinc, 2NO/2NC, 300V [GLEB24D]; 223-3202
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP66 |
| Maximum Current | 0.25 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 300V |
| Maximum DC Voltage | 250V |
| Series | GLE |
| Contact Type | Snap Action |
| Terminal Type | PG13.5 Connector |
| Length | 99.25mm |
| Width | 65mm |
| Depth | 24.75mm |
| Dimensions | 99.25 x 65 x 24.75 mm |
| Maximum Operating Temperature | +85°C |
| Mechanical Life Minimum | 10000000 cycles |
| Minimum Operating Temperature | -40°C |
