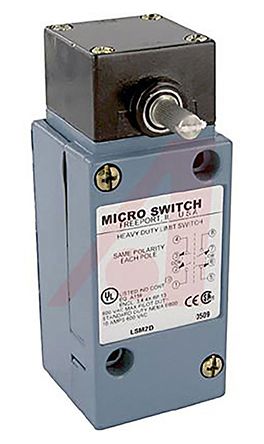

IP65, IP66, IP67 Snap Action Limit Switch Rotary Lever Die Cast Zinc, 2NO/2NC, 600V [LSM2D]; 808-2990
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Rotary Lever |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP65, IP66, IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Connection Type | 3/4 in NPT Conduit |
| Series | HDLS |
| Contact Type | Snap Action |
| Terminal Type | Plug In |
| Length | 47.8mm |
| Width | 45.3mm |
| Dimensions | 47.8 x 45.3 x 119 mm |
| Minimum Operating Temperature | -1°C |
| Mechanical Life Minimum | 50000000 cycles |
| Maximum Operating Temperature | +121°C |
| Mounting Orientation | Side |
| Depth | 119mm |
