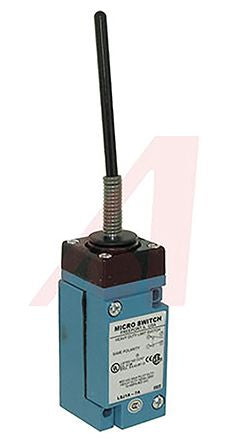

IP65, IP66, IP67 Snap Action Limit Switch Coil Spring Die Cast Zinc, NC/NO, 600V [LSYJC1A-7N]; 821-1340
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Coil Spring |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP65, IP66, IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Connection Type | 0.5 in 14 NPT Conduit |
| Series | HDLS |
| Contact Type | Snap Action |
| Terminal Type | Conduit |
| Length | 210.03mm |
| Width | 1.62in |
| Maximum Operating Temperature | +121°C |
| Mechanical Life Minimum | 50000000 cycles |
| Minimum Operating Temperature | -12°C |
| Mounting Orientation | Side |
| Dimensions | 8.269 x 1.62 x 1.745 in |
| Depth | 1.745in |
