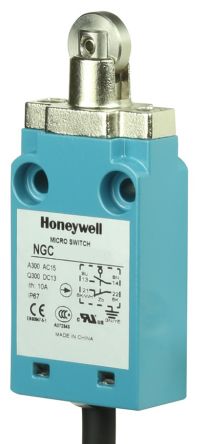

IP67 Snap Action Limit Switch Roller Plunger Metal, NO/NC, 240V [NGCMB30AX01C]; 125-2416
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 6 A @ 120 V ac, 550 mA @ 125 V dc |
| Housing Material | Metal |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Cable |
| Series | NGC |
| Contact Type | Snap Action |
| Terminal Type | 3 m Cable |
| Length | 30mm |
| Width | 16.7mm |
| Minimum Operating Temperature | -25°C |
| Depth | 71.1mm |
| Mounting Orientation | Vertical |
| Mechanical Life Minimum | 5000000 cycles |
| Operating Force | 11N |
| Standards Met | CCC, CE, CUL, EN 45545-2, EN 45545-2 HL 3, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 60947-5-1, IEC 61373, NEMA 1, NEMA 12, NEMA 13, NEMA 4, UL |
| Dimensions | 30 x 16.7 x 71.1 mm |
| Maximum Operating Temperature | +75°C |
