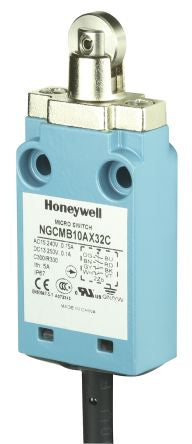

IP67 Positive Break, Snap Action Limit Switch Roller Plunger Metal, 2NO/2NC [NGCMB50AX32C]; 894-3387
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Plunger |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP67 |
| Maximum Current | 10 mA |
| Housing Material | Metal |
| Maximum DC Voltage | 0.03V |
| Connection Type | M12 |
| Series | NGC |
| Contact Type | Positive Break, Snap Action |
| Terminal Type | Cable |
| Length | 30mm |
| Width | 16.7mm |
| Maximum Operating Temperature | +70°C |
| Mechanical Life Minimum | 5000000 cycles |
| Operating Force | 9.5N |
| Depth | 71.1mm |
| Standards Met | CCC GB 14048.5-2008, CE IEC 60947-5-1, CUL, IEC 61373, UL 508 |
| Dimensions | 30 x 16.7 x 71.1 mm |
| Mounting Orientation | Panel |
| Minimum Operating Temperature | +25°C |
