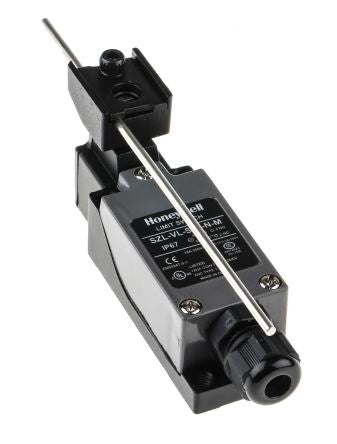

IP67 Snap Action Limit Switch Side Rotary Adjustable Rod Glass-Filled Die-Cast Metal, NC, NO, 380V [SZL-VL-S-C-N-M]; 144-8399
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Side Rotary Adjustable Rod |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.05 (220 V dc) A, 0.5 (380 V ac) A |
| Housing Material | Glass-Filled Die-Cast Metal |
| Maximum AC Voltage | 380V |
| Maximum DC Voltage | 220V |
| Connection Type | M12 Cable Gland |
| Series | SZL-VL |
| Contact Type | Snap Action |
| Terminal Type | M12 Connector |
| Length | 28.5mm |
| Width | 129mm |
| Mounting Orientation | Front, Side |
| Depth | 46.7mm |
| Minimum Operating Temperature | -20°C |
| Standards Met | CCC, CE, CULus, NEMA 1, NEMA 12, NEMA 13 |
| Maximum Operating Temperature | +70°C |
| Mechanical Life Minimum | 10000000 cycles |
| Dimensions | 28.5 x 129 x 46.7 mm |
