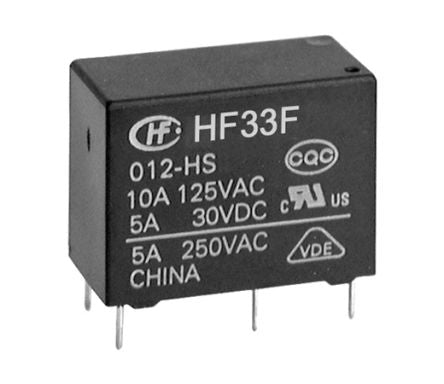

SPNO PCB Mount Latching Relay 10 A, 10 A, 5V dc [HF33F/005-HSL3F]; 176-2844
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | SPNO |
| Mounting Type | PCB Mount |
| Switching Current | 0.416666666666667 |
| Maximum Switching Current AC | 0.416666666666667 |
| Maximum Switching Current DC | 0.416666666666667 |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 30V |
| Series | HF33F |
| Maximum Switching Power DC | 150 W |
| Length | 20.5mm |
| Depth | 10.2mm |
| Height | 15.3mm |
| Dimensions | 20.5 x 10.2 x 15.3mm |
| Terminal Type | PCB Pin |
| Relay Switching Classification | Subminiature Intermediate Power Relay |
| Standards Met | CQC File No:CQC09002028694, CULus File No:E134517, VDE File No:125661 |
| Contact Material | Silver Alloy |
| Operating Temperature Range | -40 → +70°C |
| Electrical Life | 1 x 10^5 cycles |
| Coil Resistance | 55 Ω |
| Maximum Switching Power AC | 1.25 kVA |
| Isolation Coil To Contact | 4kV ac |
| Maximum Operating Temperature | +70°C |
| Life | 5 x 10^6 cycles |
| Coil Power | 200mW |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 1 |
