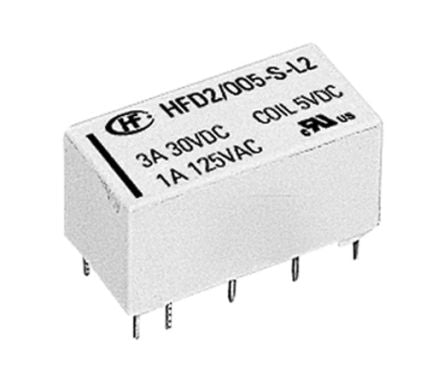

DPDT PCB Mount Latching Relay 3 A, 3 A, 5V dc [HFD2/005-S-L2-D]; 176-2926
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.125 |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 0.125 |
| Maximum Switching Current DC | 0.125 |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Series | HFD2 |
| Maximum Switching Power DC | 90 W |
| Length | 20.2mm |
| Depth | 10.2mm |
| Height | 10.6mm |
| Dimensions | 20.2 x 10.2 x 10.6mm |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Relay Switching Classification | Subminiature DIP Relay |
| Standards Met | CQC File No:CQC13002095175, CULus File No:E133481 |
| Contact Material | Silver |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 1kV ac |
| Coil Power | 150mW |
| Life | 1 x 10^8 cycles |
| Maximum Switching Power AC | 125 VA |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 167 Ω |
| Electrical Life | 5 x 10^4 cycles |
