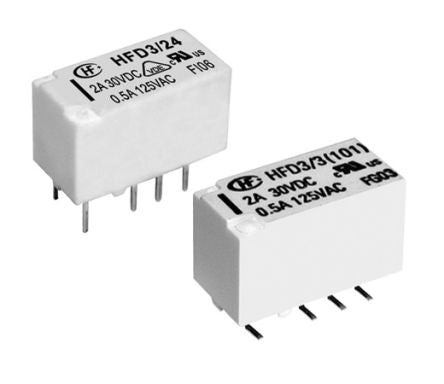

DPDT PCB Mount Latching Relay 4 A, 4 A, 12V dc [HFD3/012-L2]; 176-2714
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.166666666666667 |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 0.166666666666667 |
| Maximum Switching Current DC | 0.166666666666667 |
| Maximum Switching Voltage AC | 277V |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 90 W |
| Series | HFD3 |
| Length | 15mm |
| Depth | 7.5mm |
| Height | 9mm |
| Dimensions | 15 x 7.5 x 9mm |
| Terminal Type | PCB Pin |
| Electrical Life | 1 x 10^5 cycles |
| Isolation Coil To Contact | 2.5kV ac |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 2 |
| Relay Switching Classification | Subminiature Signal Relay |
| Contact Material | Silver Alloy |
| Standards Met | CQC File No:CQC1400207409, CULus File No:E133481, VDE File No:40018867 |
| Coil Power | 200mW |
| Life | 1 x 10^8 cycles |
| Maximum Switching Power AC | 62.5 VA |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 720 Ω |
