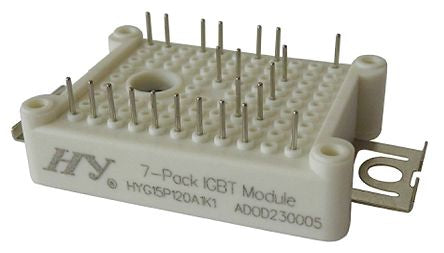

HY Electronic Corp HYG15P120A1K1, 3 Phase Bridge IGBT Module, 20 A max, 1200 V, Through Hole [HYG15P120A1K1]; 916-3321
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | 3 Phase Bridge |
| Transistor Configuration | 3 Phase |
| Maximum Continuous Collector Current | 20 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | Through Hole |
| Pin Count | 22 |
| Maximum Power Dissipation | 156 W |
| Dimensions | 62.8 x 34 x 12mm |
| Height | 12mm |
| Length | 62.8mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 34mm |
