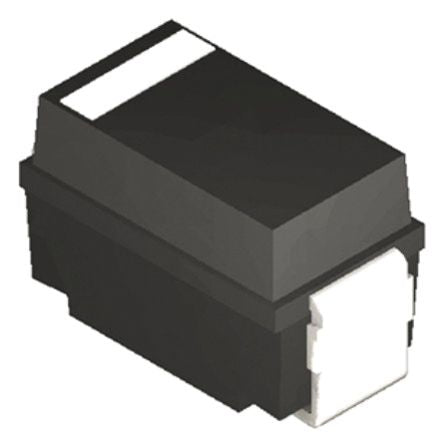

HY Electronic Corp SMAJ5.0CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC [SMAJ5.0CA]; 903-5780
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 9.2V |
| Minimum Breakdown Voltage | 6.4V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 43.5A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Surge Current Rating | 40A |
| Maximum Reverse Leakage Current | 1.6 mA, 800 μA |
| Width | 2.9mm |
| Test Current | 10mA |
| Dimensions | 4.6 x 2.9 x 2.42mm |
| Length | 4.6mm |
| Height | 2.42mm |
