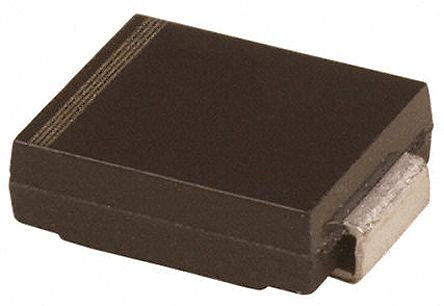

HY Electronic Corp SMCJ8.5A, Uni-Directional TVS Diode, 1500W, 2-Pin SMC [SMCJ8.5A]; 903-6008
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 14.4V |
| Minimum Breakdown Voltage | 9.44V |
| Mounting Type | Surface Mount |
| Package Type | SMC |
| Maximum Reverse Stand-off Voltage | 8.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 104.2A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 7.11mm |
| Maximum Reverse Leakage Current | 20µA |
| Surge Current Rating | 200A |
| Test Current | 1mA |
| Height | 2.42mm |
| Dimensions | 7.11 x 6.22 x 2.42mm |
| Width | 6.22mm |
