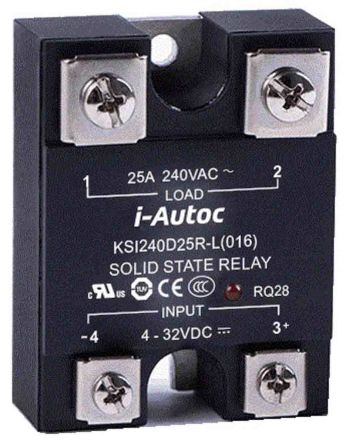

i-Autoc 25 A Solid State Relay, Zero Cross, Panel Mount, SCR, Triac, 530 V ac Maximum Load [KSI480D25-L]; 164-0569
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 25 A |
| Series | KSI |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 530 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Terminal Type | Screw |
| Output Device | SCR, TRIAC |
| Maximum Turn On Time | 10 ms |
| Dimensions | 58.4 x 45.7 x 20.5mm |
| Off State Leakage Current | 5 mA |
| Length | 58.4mm |
| Minimum Operating Temperature | -30°C |
| Height | 20.5mm |
| Maximum Operating Temperature | +80°C |
| Relay Type | Single Phase |
| Standards Met | CCCs, CE, CULus, TUV |
| Special Features | Build-In MOV/TVS Option, DC Control, Dielectric Strength, LED Indicator, TRIAC or SCR Output |
| Depth | 45.7mm |
| Load Voltage Range | 48 → 530V ac |
| Control Voltage Range | 4 → 32 V dc |
| Operating Temperature Range | -30 → +80°C |
