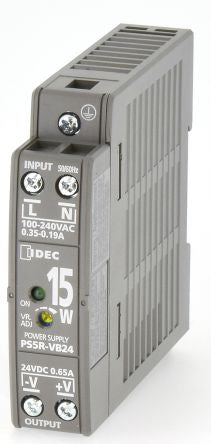

Idec, PS5R DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 650mA Output Current [PS5R-VB24]; 179-5349
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 650 mA |
| Power Rating | 15W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Power Supply |
| Height | 90mm |
| Width | 22.5mm |
| Depth | 95mm |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -25°C |
| Efficiency | 0.84 |
| Ripple And Noise | 4% Pk-Pk |
| Output Voltage Adjustment Range | ±10% |
| MTBF | 900000 (Minimum)h |
| Load Regulation | 0.01 |
| Special Features | Can be Installed in 6 Directions, Compact Size Preserves Panel Space, Five-Year Factory Warranty |
| Standards Met | ANSI/ISA, CE:TUV, CSA C22.2 No 107.1.213.223, CULus, EN 50178, EN 60950-1, EN 61204-3, UL 310, UL 508 |
| Maximum Temperature | +75°C |
| Series | PS5R |
