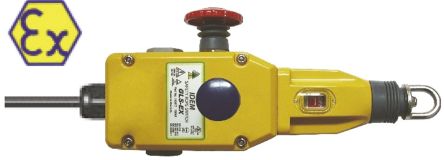

GLS-Ex Cable Switch with E-Stop, Straight, 80m, NO/NC [142025]; 826-4120
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Guardian Line |
| Series | GLS-Ex |
| Reset Button | Yes |
| Pole Configuration | 2P |
| Normal State Configuration | NO/NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 80m |
| Maximum Current | 0.166666666666667 |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 250V |
| Housing Material | Die Cast Aluminium |
| Number of Cable Entries | 3 |
| Conduit Entry | M20 |
| Size of Cable Entries | M20 |
| Minimum Operating Temperature | -25°C |
| Dimensions | 239 x 63 x 54 mm |
| Depth | 54mm |
| Maximum Operating Temperature | +80°C |
| Length | 239mm |
| IP Rating | IP67 |
| E-Stop Button | Yes |
| Width | 63mm |
| Hazardous Area Certification | ATEX |
