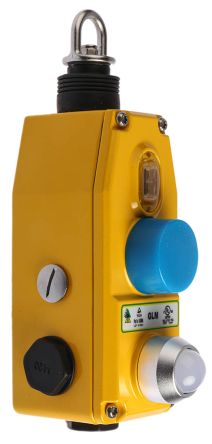

GLM Cable Switch with E-Stop, Straight, 50m, 2NO/2NC [143068A]; 826-4104
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Guardian Line |
| Series | GLM |
| Reset Button | Yes |
| Pole Configuration | 4P |
| Normal State Configuration | 2NO/2NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 50m |
| Maximum Current | 2.5 A |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 250V |
| Housing Material | Die Cast Aluminium |
| Number of Cable Entries | 3 |
| Conduit Entry | M20 |
| Size of Cable Entries | M20 |
| Minimum Operating Temperature | -25°C |
| Width | 57mm |
| Length | 205mm |
| Depth | 57mm |
| Dimensions | 205 x 57 x 57 mm |
| E-Stop Button | Yes |
| Maximum Operating Temperature | +80°C |
| IP Rating | IP67 |
