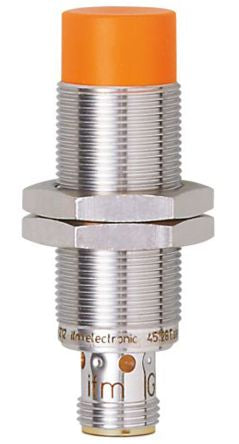

ifm Electronic, M18 x 1, IO-Link PNP/NPN-NO/NC Inductive Sensor 60mm Length, 10 → 30 V dc supply voltage [IG6616]; 144-4442
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP/NPN-NO/NC |
| Detection Range | 13 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Communication Protocol | IO-LINK |
| Length | 60mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| IP Rating | IP65, IP66, IP67, IP68, IP69K |
| Switching Current | 10 mA |
| Interface | IO-Link |
| Housing Material | Bronze, PBT, PEI |
| Short Circuit Overload Protection | Yes |
| Shielding | Unshielded |
| Maximum Switching Frequency | 300Hz |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Reverse Polarity Protection | Yes |
| Standards Met | CE, CULus, DIN EN 60947-5-2, EAC, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, IEC 61131-9 |
