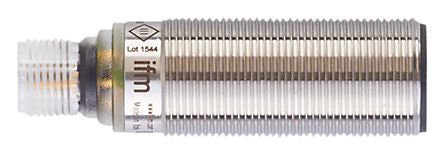

ifm Electronic Ultrasonic Sensor Barrel M18 x 1, Maximum of 800 mm, Analogue, PNP, 4-Pin M12 Connector IP67 [UGT504]; 123-2453
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 60 → 800 mm |
| Output Type | Analogue, PNP-NO |
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Transducer Frequency | 230kHz |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Epoxy Glass Ceramic, Polyamide, Stainless Steel |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Standards Met | CE, CULus, CULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL |
| Switching Current | <35 mA |
| Response Time | 0.1 s |
| Length | 60.5mm |
| Minimum Operating Temperature | -20°C |
| Sensor Configuration | Diffuse Reflection |
| Maximum Operating Temperature | +70°C |
