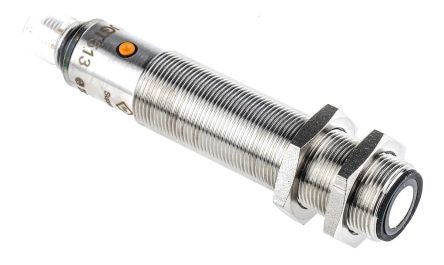

ifm Electronic Ultrasonic Sensor Barrel M18 x 1, Maximum of 2200 mm, Current, PNP NO/NC, 5-Pin M12 Connector IO-Link [UGT513]; 123-2462
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 200 → 2200 mm |
| Output Type | Analogue, PNP-NO/NC |
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Transducer Frequency | 200kHz |
| Communication Protocol | IO-LINK |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP67 |
| Housing Material | Epoxy Glass Ceramic, Polyamide, Stainless Steel |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Response Time | <0.3 s |
| Interface | IO-Link |
| Switching Current | 55 mA |
| Sensor Configuration | Diffuse Reflection |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 2 Hz |
| Standards Met | CE, CULus, CULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL |
| Minimum Operating Temperature | -20°C |
| Length | 97.5mm |
