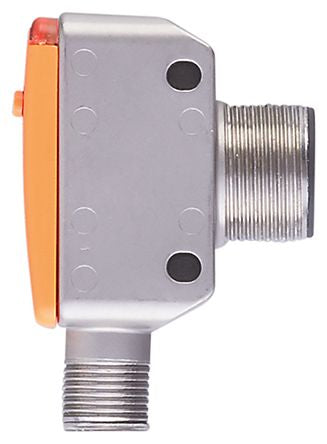

ifm Electronic Ultrasonic Sensor Block M18 x 1, Maximum of 1200 mm, PNP NO/NC, Voltage, 4-Pin M12 Connector IP67 [UGT585]; 123-2469
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 80 → 1200 mm |
| Output Type | Analogue, PNP-NO/NC |
| Body Style | Block |
| Thread Size | M18 x 1 |
| Transducer Frequency | 200kHz |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Epoxy Glass Ceramic, PBT, Polyamide, Stainless Steel |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Depth | 37.7mm |
| Minimum Operating Temperature | -20°C |
| Length | 53mm |
| Width | 20mm |
| Response Time | 0.1 s |
| Dimensions | 53 x 20 x 37.7 mm |
| Switching Frequency | 5 Hz |
| Switching Current | <35 mA |
| Sensor Configuration | Diffuse Reflection |
| Standards Met | CE, CULus, CULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL |
| Maximum Operating Temperature | +70°C |
