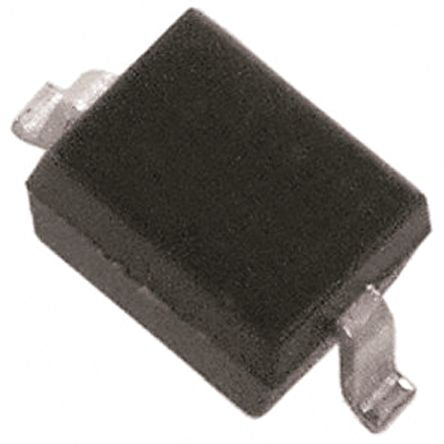

Infineon BAR6303WE6327HTSA1 PIN Diode, 100mA, 50V, 2-Pin SOD-323 [BAR6303WE6327HTSA1]; 826-9241
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Application | High Speed Switching |
| Maximum Forward Current | 100mA |
| Maximum Reverse Voltage | 50V |
| Typical Carrier Life Time | 75ns |
| Maximum Forward Voltage | 1.2V |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Pin Count | 2 |
| Maximum Diode Capacitance | 0.3pF |
| Maximum Series Resistance @ Maximum IF | 2 Ω@ 5 mA |
| Dimensions | 1.7 x 1.25 x 0.9mm |
| Height | 0.9mm |
| Length | 1.7mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 1.25mm |
