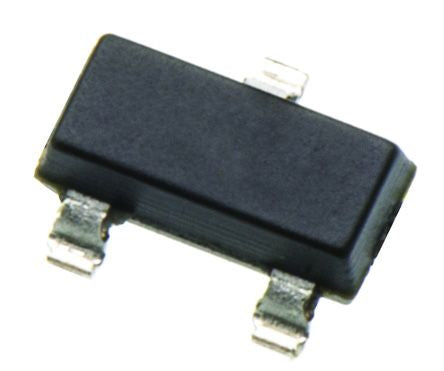

Infineon, BCR198E6327HTSA1 PNP Digital Transistor, 100 mA 50 V 47 kΩ, Ratio Of 1, 3-Pin SOT-23 [BCR198E6327HTSA1]; 110-7759
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Number of Elements per Chip | 1 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Typical Input Resistor | 47 kΩ |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 3 |
| Minimum DC Current Gain | 70 |
| Transistor Configuration | Single |
| Maximum Power Dissipation | 200 mW |
| Maximum Collector Emitter Saturation Voltage | 0.3 V |
| Maximum Emitter Base Voltage | 10 V |
| Typical Resistor Ratio | 1 |
| Length | 2.9mm |
| Width | 1.3mm |
| Dimensions | 2.9 x 1.3 x 0.9mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.9mm |
