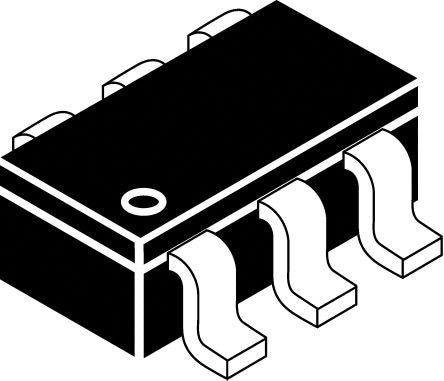

Infineon, BCR523UE6433HTMA1, Dual NPN Digital Transistor 50 V 1 kΩ, Ratio Of 0.1, 6-Pin SC-74 [BCR523UE6433HTMA1]; 857-8365
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Number of Elements per Chip | 2 |
| Maximum Collector Emitter Voltage | 50 V |
| Typical Input Resistor | 1 kΩ |
| Mounting Type | Surface Mount |
| Package Type | SC-74 |
| Pin Count | 6 |
| Minimum DC Current Gain | 70 |
| Transistor Configuration | Isolated |
| Maximum Power Dissipation | 330 mW |
| Maximum Collector Emitter Saturation Voltage | 0.0003 V |
| Maximum Emitter Base Voltage | 5 V |
| Typical Resistor Ratio | 0.1 |
| Maximum Operating Temperature | +150 °C |
| Height | 1mm |
| Width | 1.6mm |
| Length | 2.9mm |
| Dimensions | 2.9 x 1.6 x 1mm |
