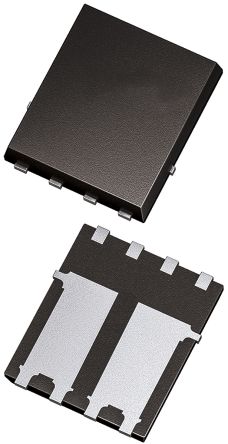

BSC026N08NS5ATMA1 N-Channel MOSFET, 100 A, 80 V BSC026N08NS5, 8-Pin TDSON Infineon [BSC026N08NS5ATMA1]; 170-2315
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | TDSON |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 2.6 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.8V |
| Minimum Gate Threshold Voltage | 2.2V |
| Maximum Power Dissipation | 156 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Length | 5.49mm |
| Maximum Operating Temperature | +150 °C |
| Series | BSC026N08NS5 |
| Height | 1.1mm |
| Forward Diode Voltage | 1.1V |
| Typical Gate Charge @ Vgs | 74 nC @ 10 V |
| Width | 6.35mm |
