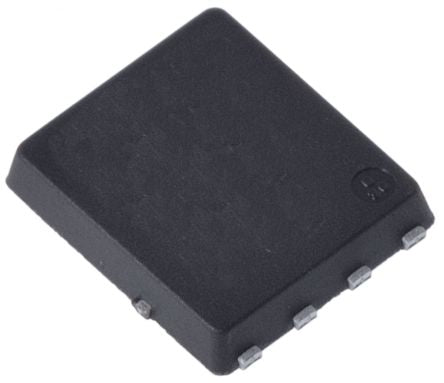

BSC080N03MSGATMA1 N-Channel MOSFET, 53 A, 30 V OptiMOS 3, 8-Pin TDSON Infineon [BSC080N03MSGATMA1]; 165-6684
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 53 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | TDSON |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 10.2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 35 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 6.1mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 21 nC @ 10 V |
| Height | 1.1mm |
| Series | OptiMOS 3 |
| Maximum Operating Temperature | +150 °C |
| Length | 5.35mm |
| Transistor Material | Si |
